BBT 12/20 Ton Horizontal Wood Log Splitter – 6.5HP Petrol | Built Tough for Australian Timber
Don’t let compact size fool you — the BBT 12/20T Horizontal Log Splitter is a powerhouse engineered to handle Australia’s toughest hardwoods. Whether you're splitting firewood for home use, managing a rural property, or working in a commercial setting, this petrol log splitter delivers serious performance in a space-saving design.
With a robust 6.5HP JD 4-stroke petrol engine and an industrial-grade gear-driven hydraulic system, the BBT 12/20T makes light work of even the most stubborn timber, including ironbark, stringy bark, and knotty hardwoods. Backed by a 2-year warranty, this log splitter is built to deliver season after season.
✅ Key Features
-

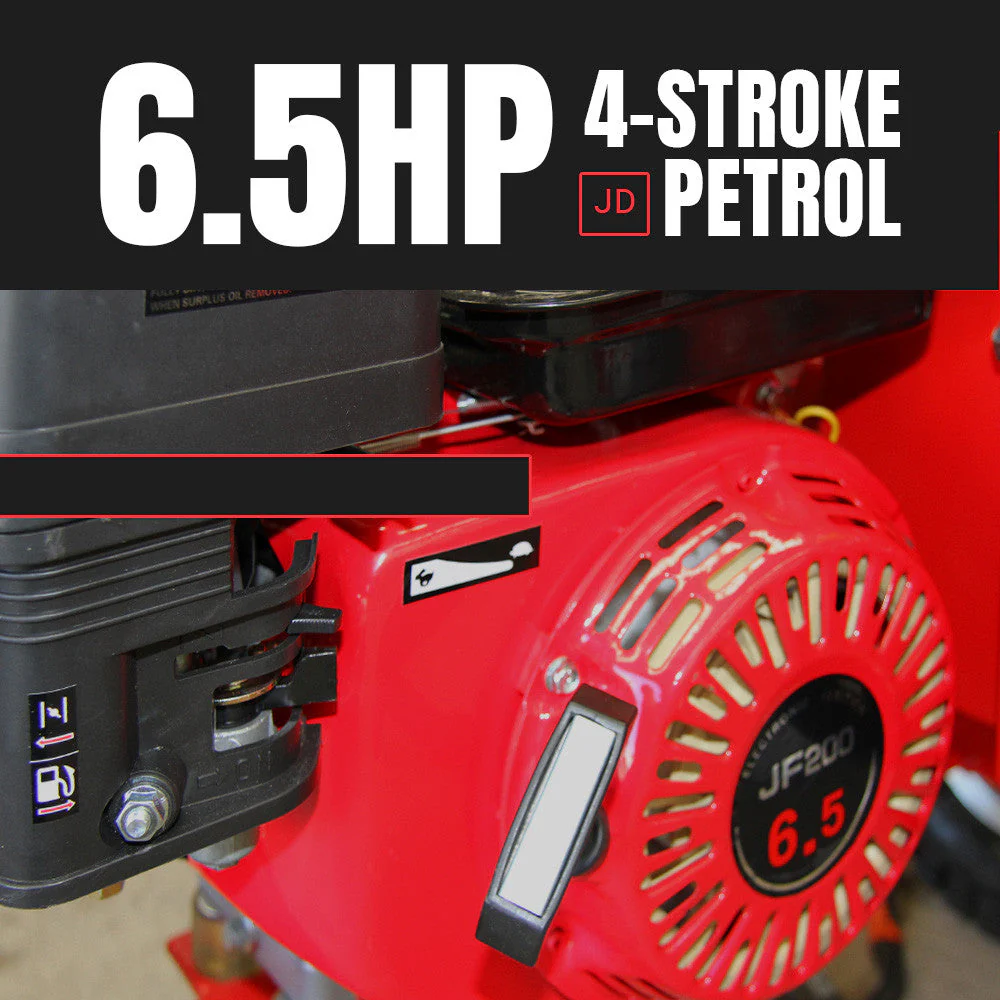

Genuine 6.5HP JD 4-Stroke Petrol Engine – Built for long-lasting performance
-
Fully Compliant with Updated Environmental Emission Standards
-

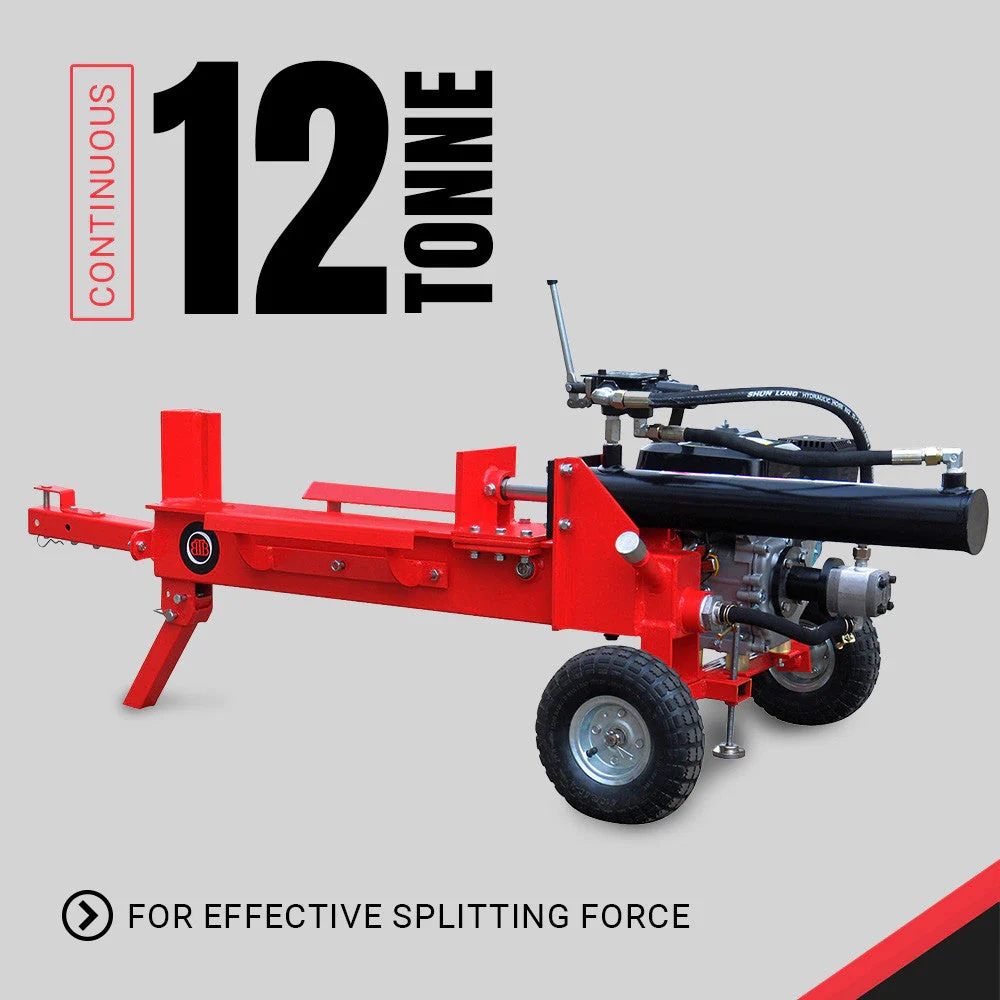

Continuous 12T Force – Tested up to 20T – Easily splits both hard and softwood
-
Alloy Gear Pump (10LPM) – Reliable and efficient hydraulic operation
-

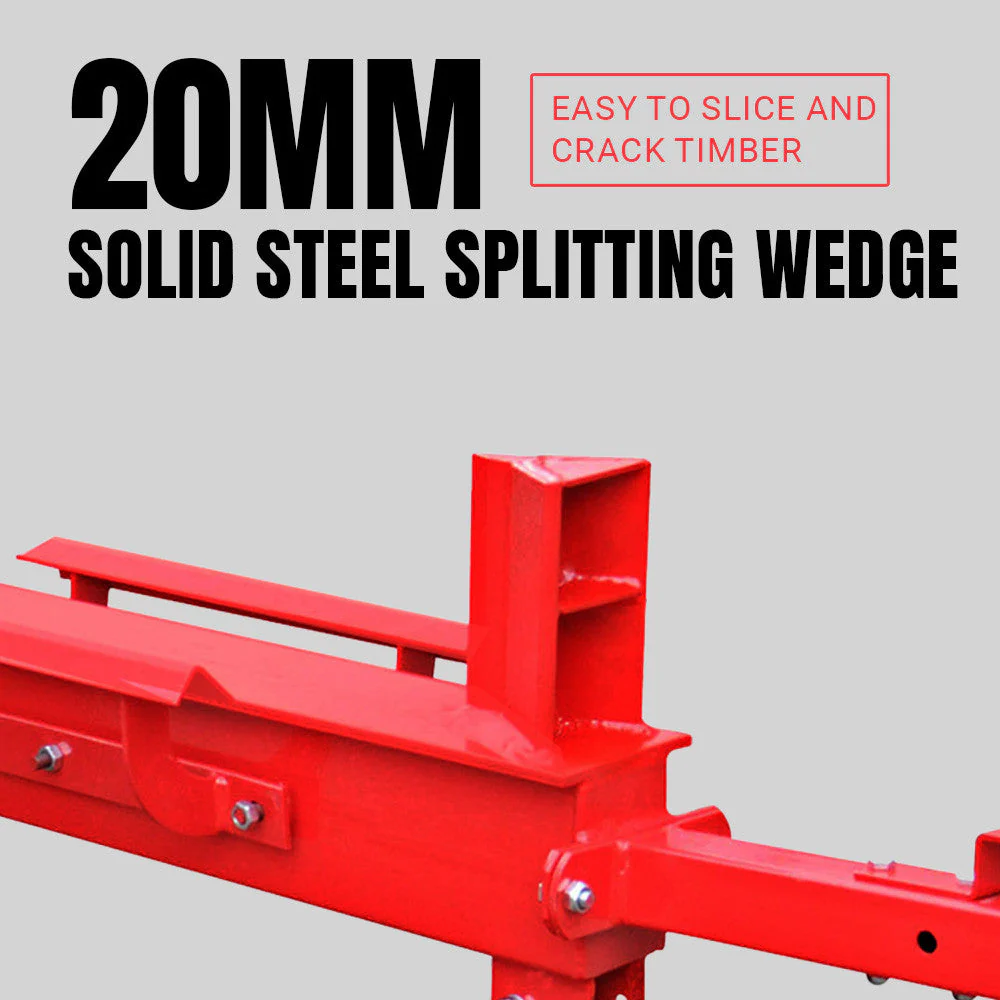

20mm Solid Steel Splitting Wedge – Ideal for hardwood, knotty grains, and tough rounds
-

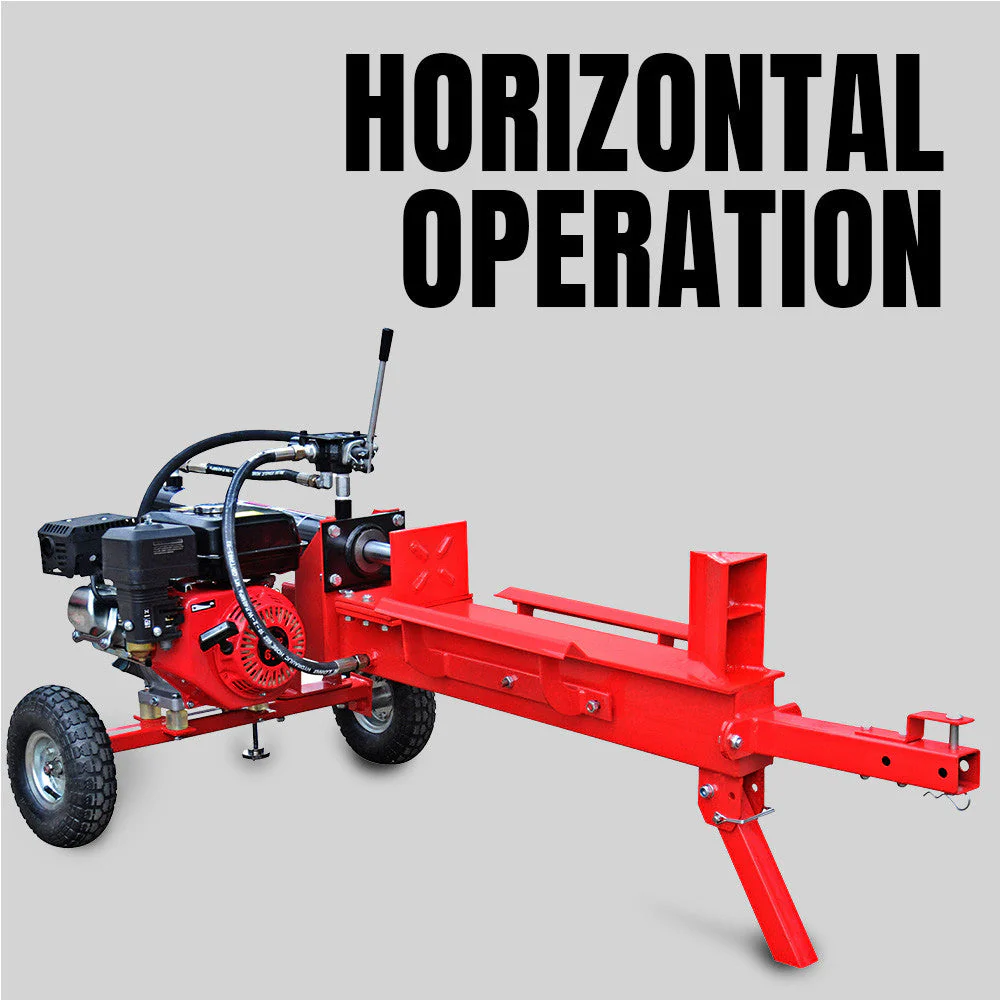

Horizontal Operation Only – Simple, effective and stable in all terrain
-

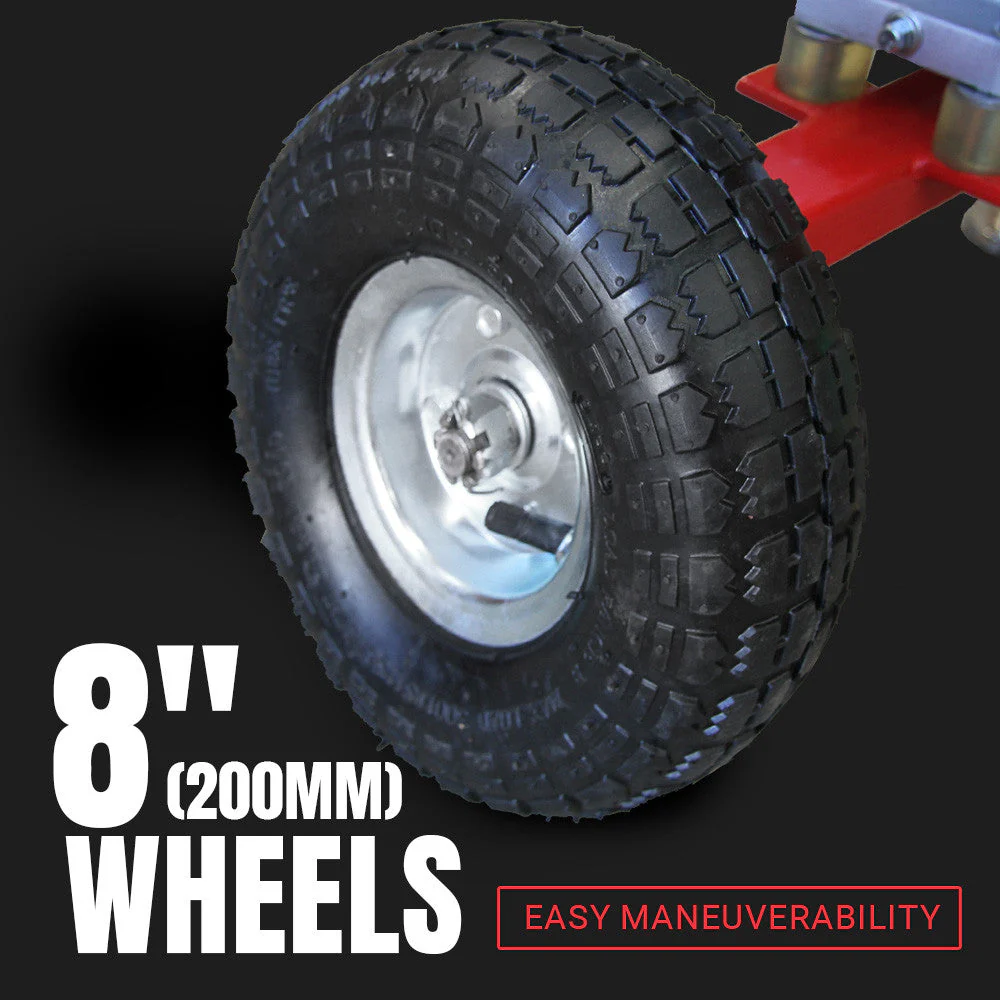

200mm (8”) Pneumatic Tyres – Easy to move around sheds, paddocks or yards
-
Compact and Towable – Great for storage or transporting to job sites
-

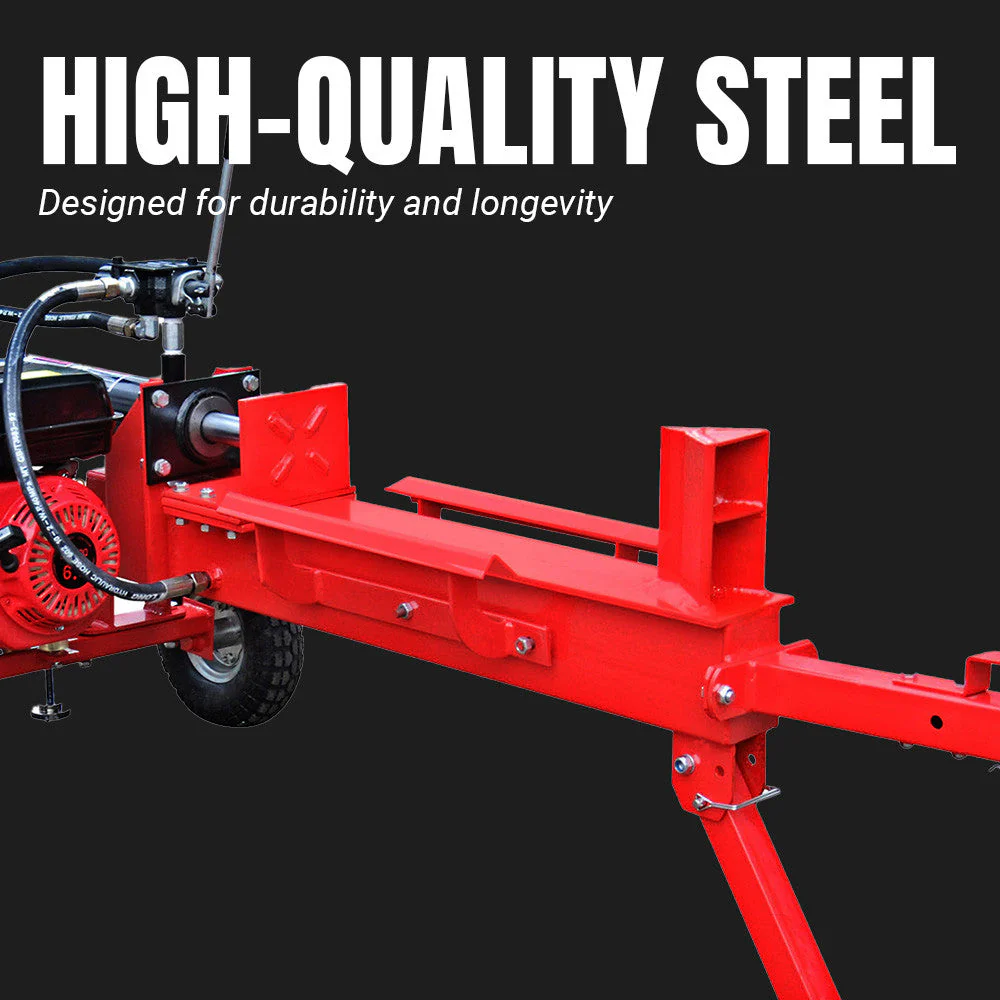

All-Steel Construction – Designed to endure tough Aussie conditions
-
2-Year Nationwide Warranty – Confidence in every use
📐 Technical Specifications
| Engine | JD 6.5HP 4-Stroke Petrol |
|---|---|
| Start Type | Pull Start |
| Fuel Type | Unleaded Petrol (95 or 98 RON) |
| Fuel Tank Capacity | 3.6L |
| Engine Oil | 600ml SAE30 |
| Spark Plug | NGK BPR6ES / DENSO W20EPR / TORCH F6TC |
| Hydraulic System | Alloy Gear Pump – 10LPM |
| Hydraulic Oil | 10L ISO68 (Not included) |
| Max Splitting Force | Tested up to 20 Ton (Rated 12 Ton) |

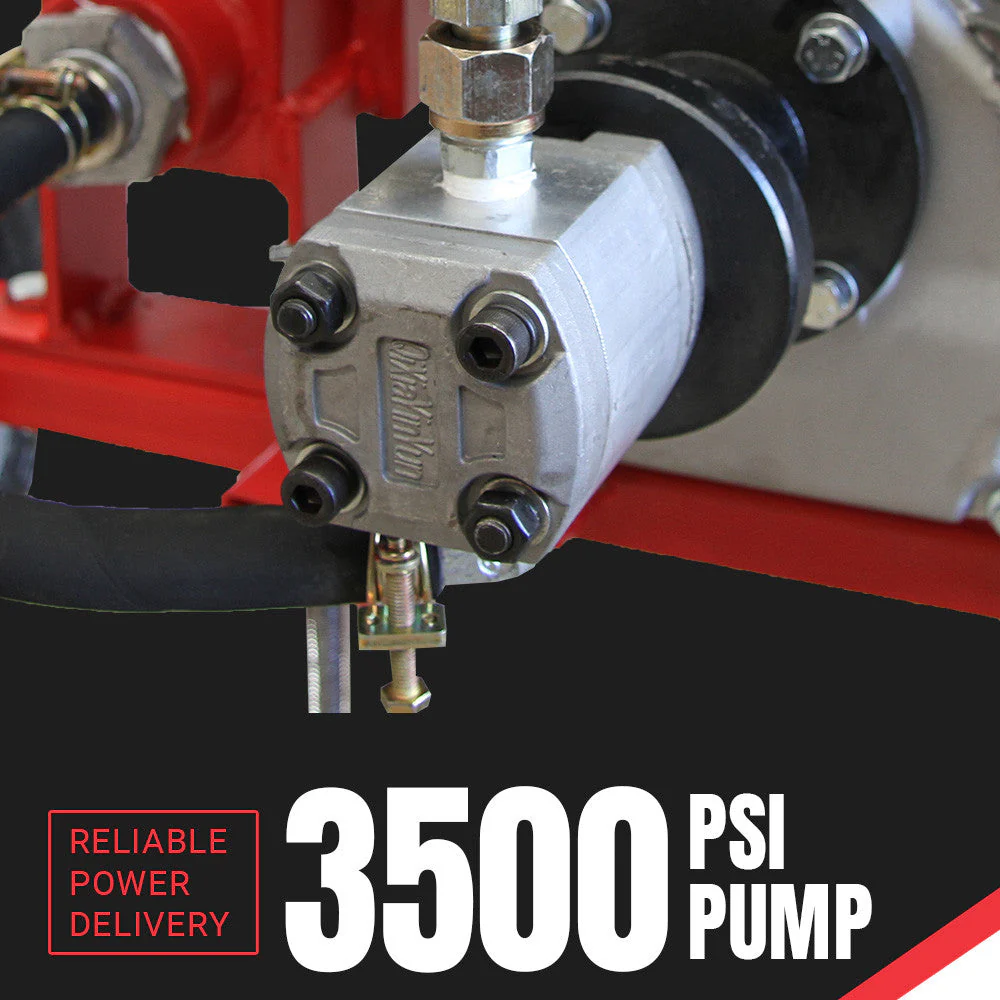

| Hydraulic Pressure | 3500 PSI |

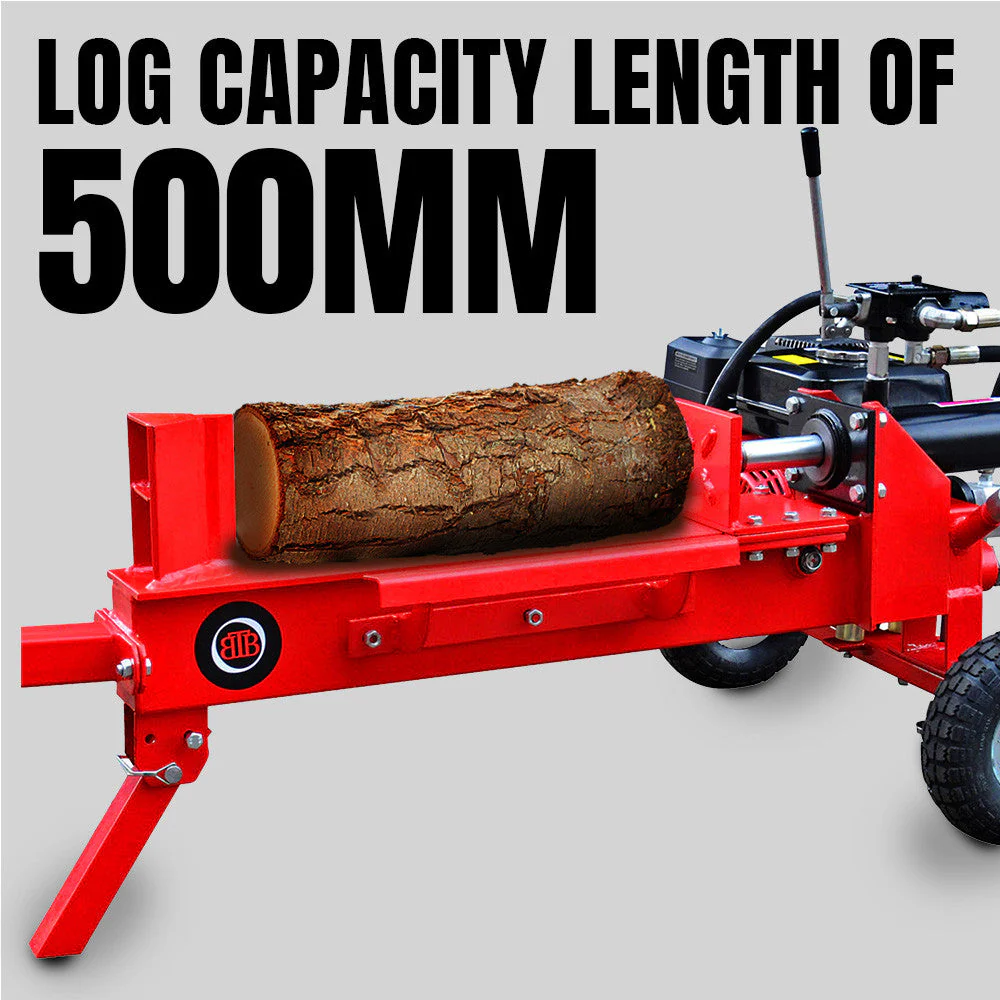

| Max Log Length | 500mm (20”) |
| Max Log Diameter | Varies by wood type – handles large rounds |
| Operation Type | Horizontal Only |
| Towable | Yes (Manual relocation only – not road registered) |
📦 Package Dimensions
-
L x W x H: 1380mm x 480mm x 510mm
-
Weight: 110kg
-
Assembly Required: Yes – Easy setup with instructions provided
Whether you're prepping for winter or running a busy property, the BBT 12/20T Horizontal Log Splitter delivers commercial-grade splitting power in a compact, durable frame. Tackle your firewood pile the smart way — with a machine that’s built for work, not weekends.
🔧 Compact. Powerful. Ready for anything.
🛡️ Backed by a 2-Year Warranty for Your Peace of Mind
📦 Ships Australia-Wide – Order Yours Today!
