Harvey Turbo T-60S Woodwork Wood Lathe

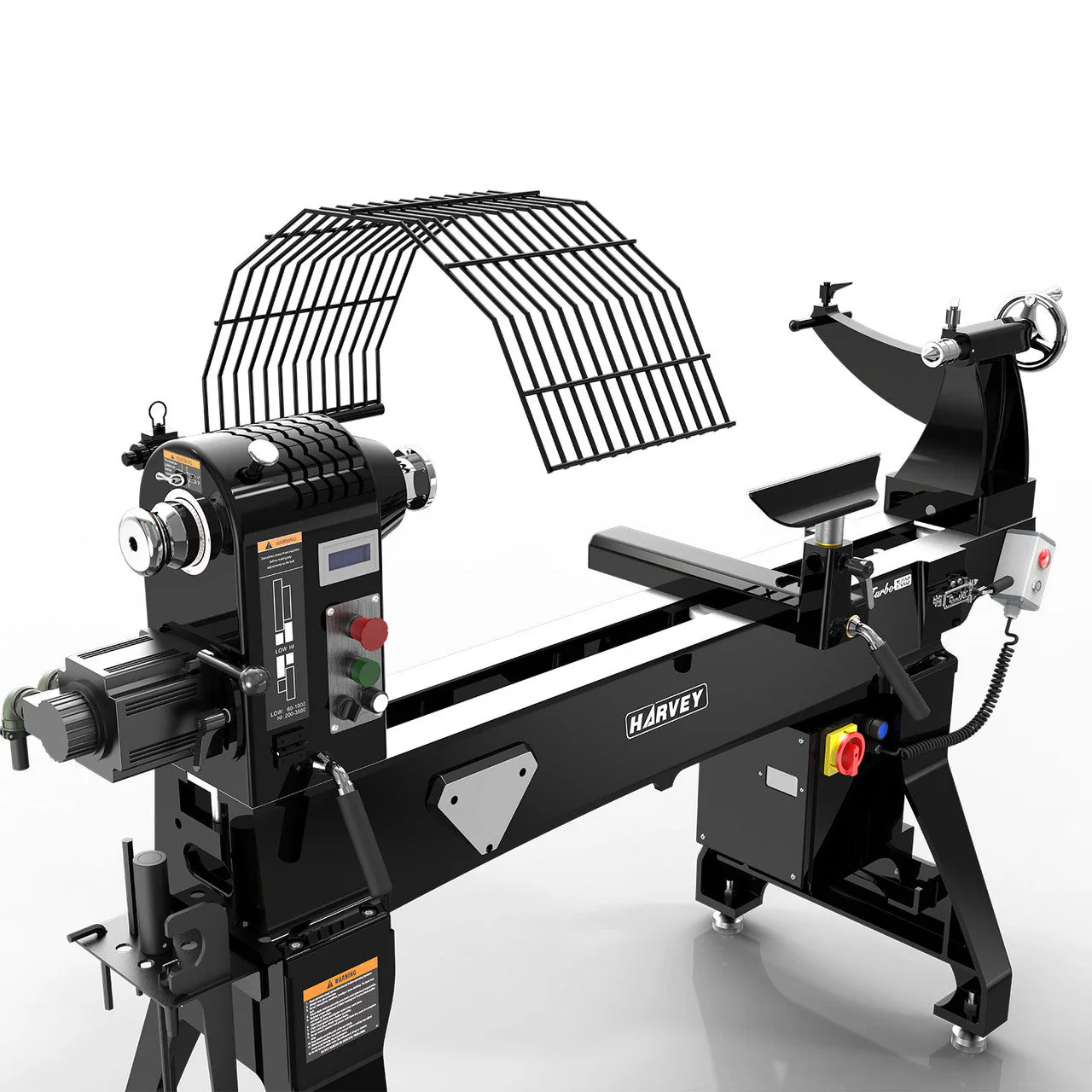

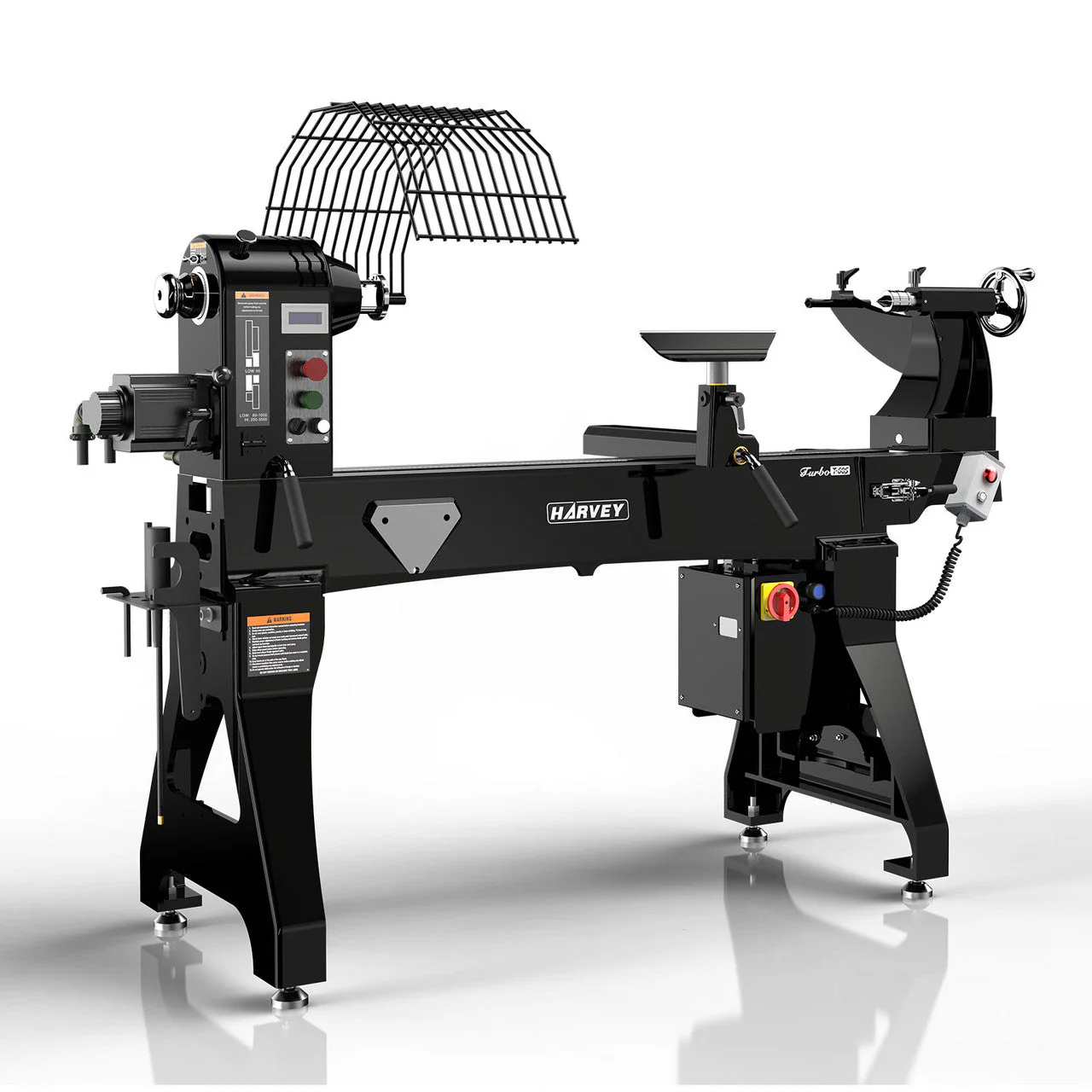

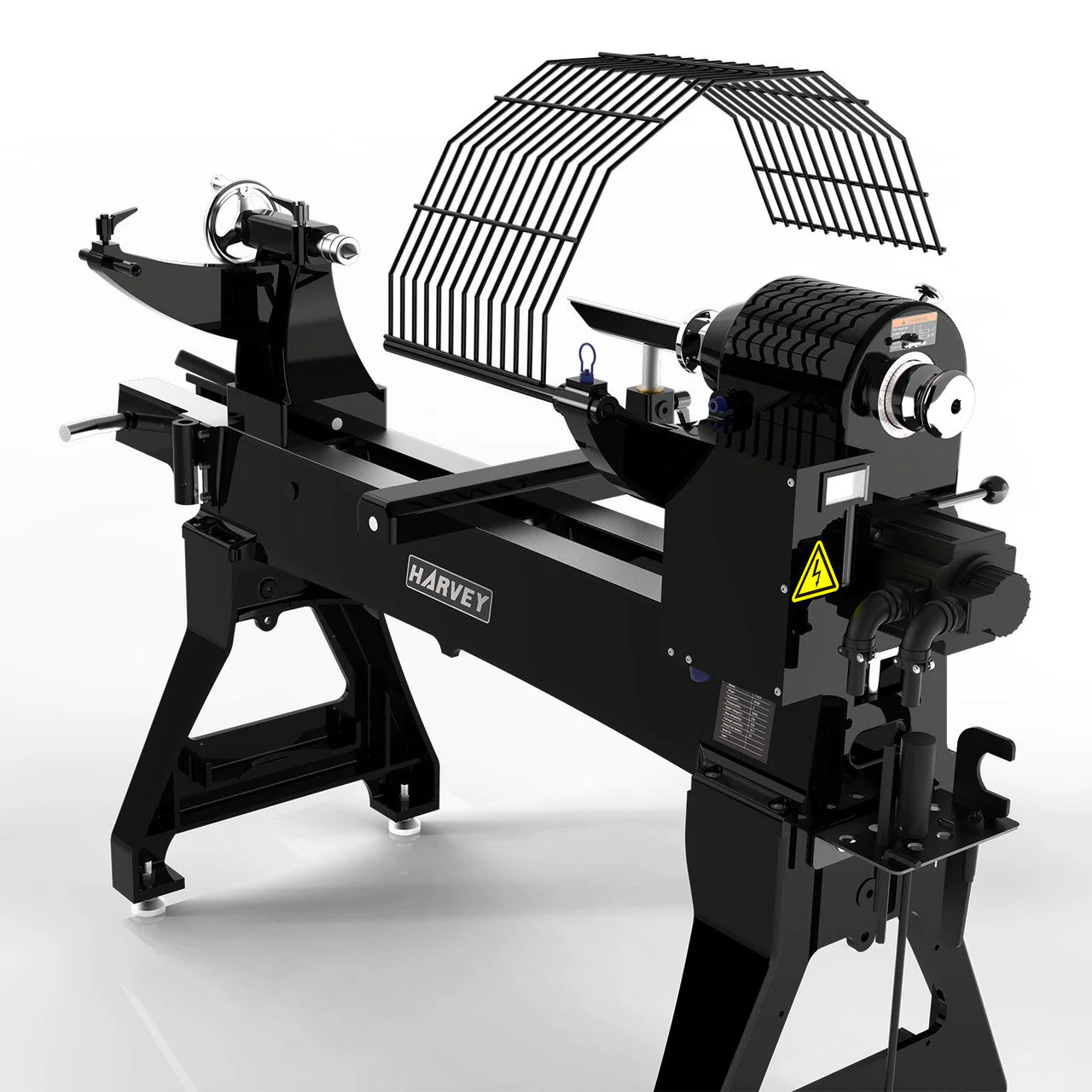

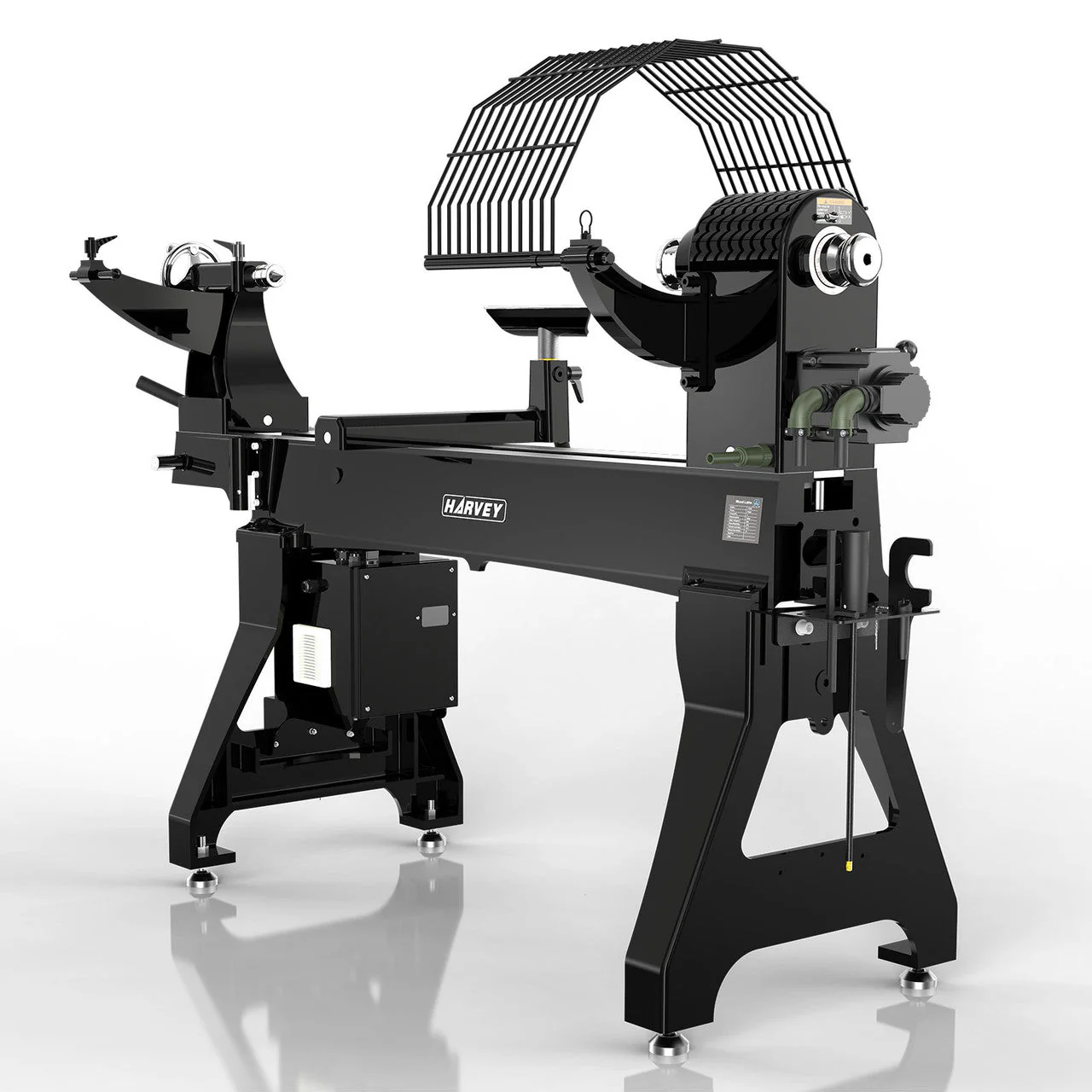

Harvey T-60S Woodworking Wood Lathe

Like other Harvey machines, this lathe is designed and built to satisfy the most imaginative fantasies of woodworkers. With outstanding new features, energetic performances and so many user-friendly considerations, this lathe simply turns turning jobs into an unprecedented experience.

Features

• High grade cast iron structure for head stock, beds and stands to secure maximum stability
• All beds are precisely ground to mirror like surface for smooth operations
• Driven by advanced Servo DC brush less motor with variable speeds 50-3500 RPM
• Digital wide angle speed readout with blue back light
• Extraordinarily high torque at low speeds for easy working on large work piece
• Oversized alloy spindle supported by three precision bearings
• Easy belt changing without taking off spindle
• Sliding head stock for easy outboard turning
• Unique “Swing-away” Extension Bed system for easy tail stock storage (standard for T-60S)

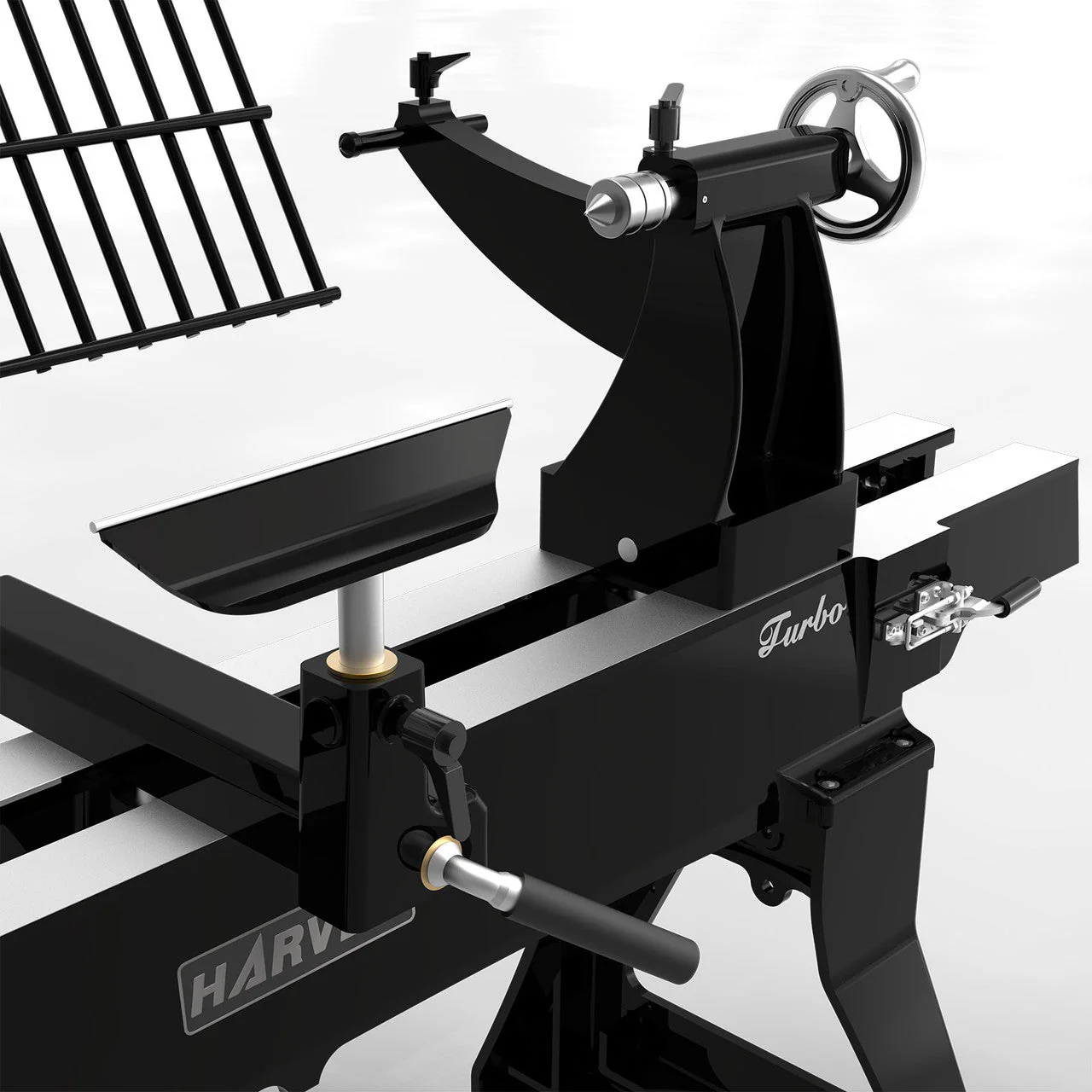

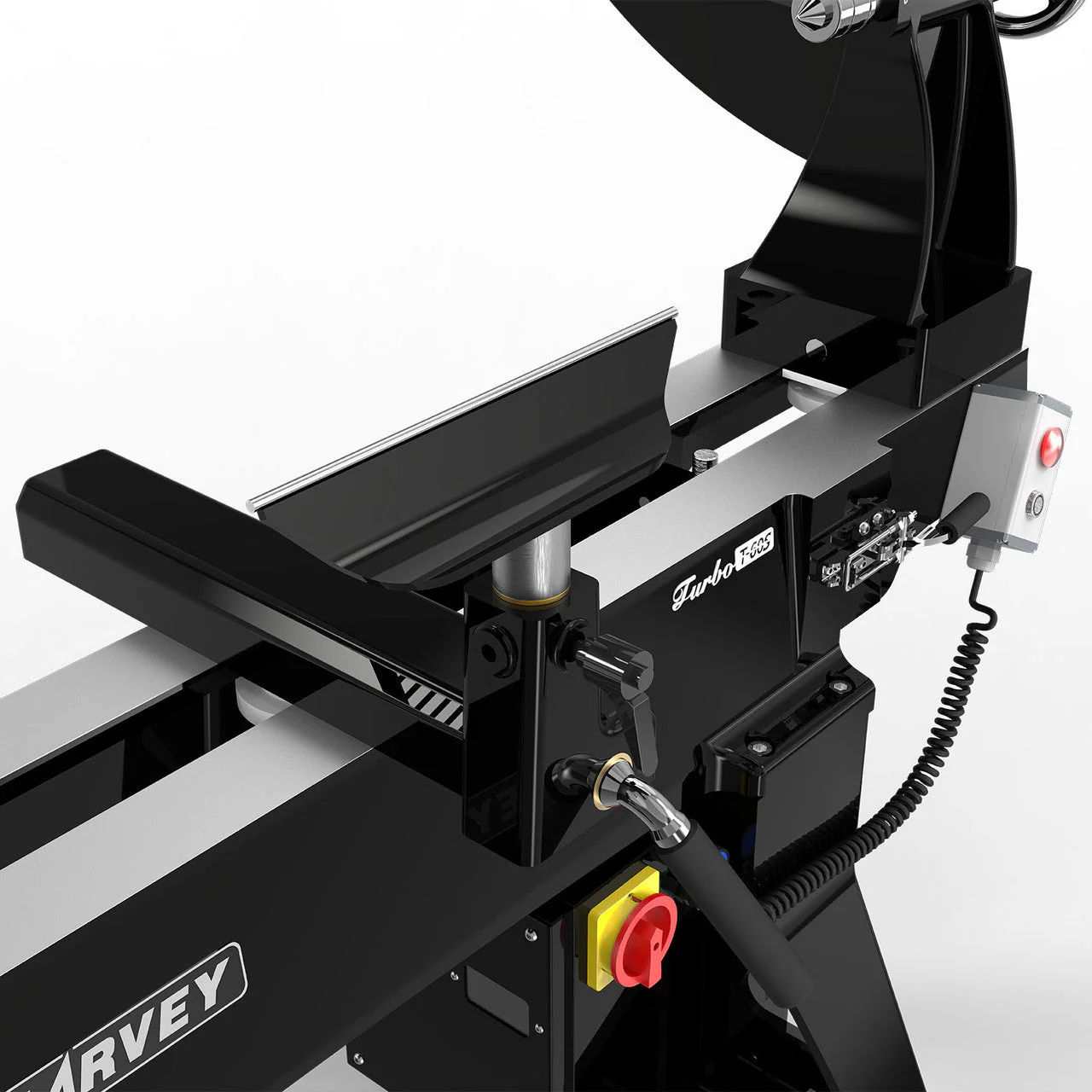

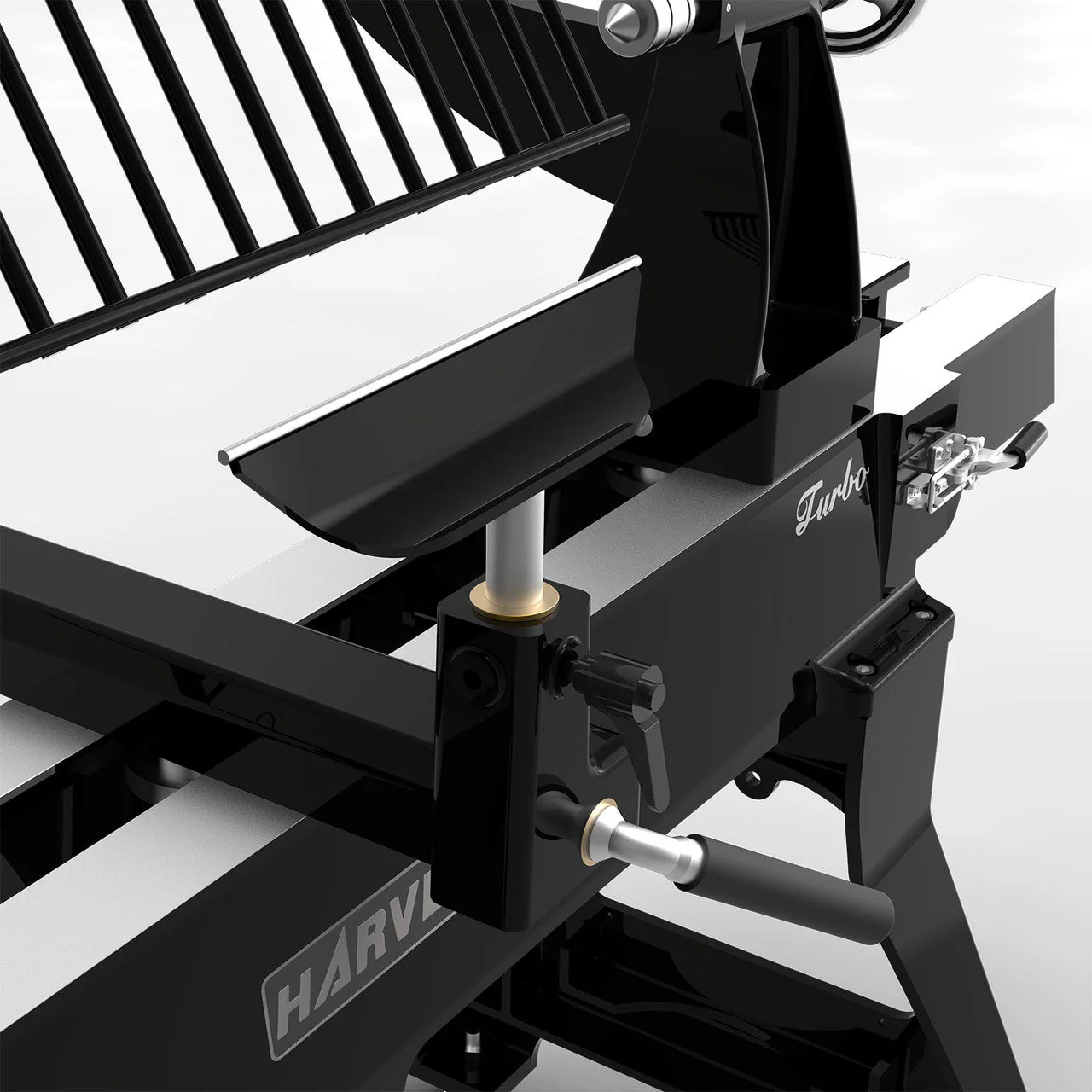

• Heavy duty banjo with easy manoeuvre and secure locking

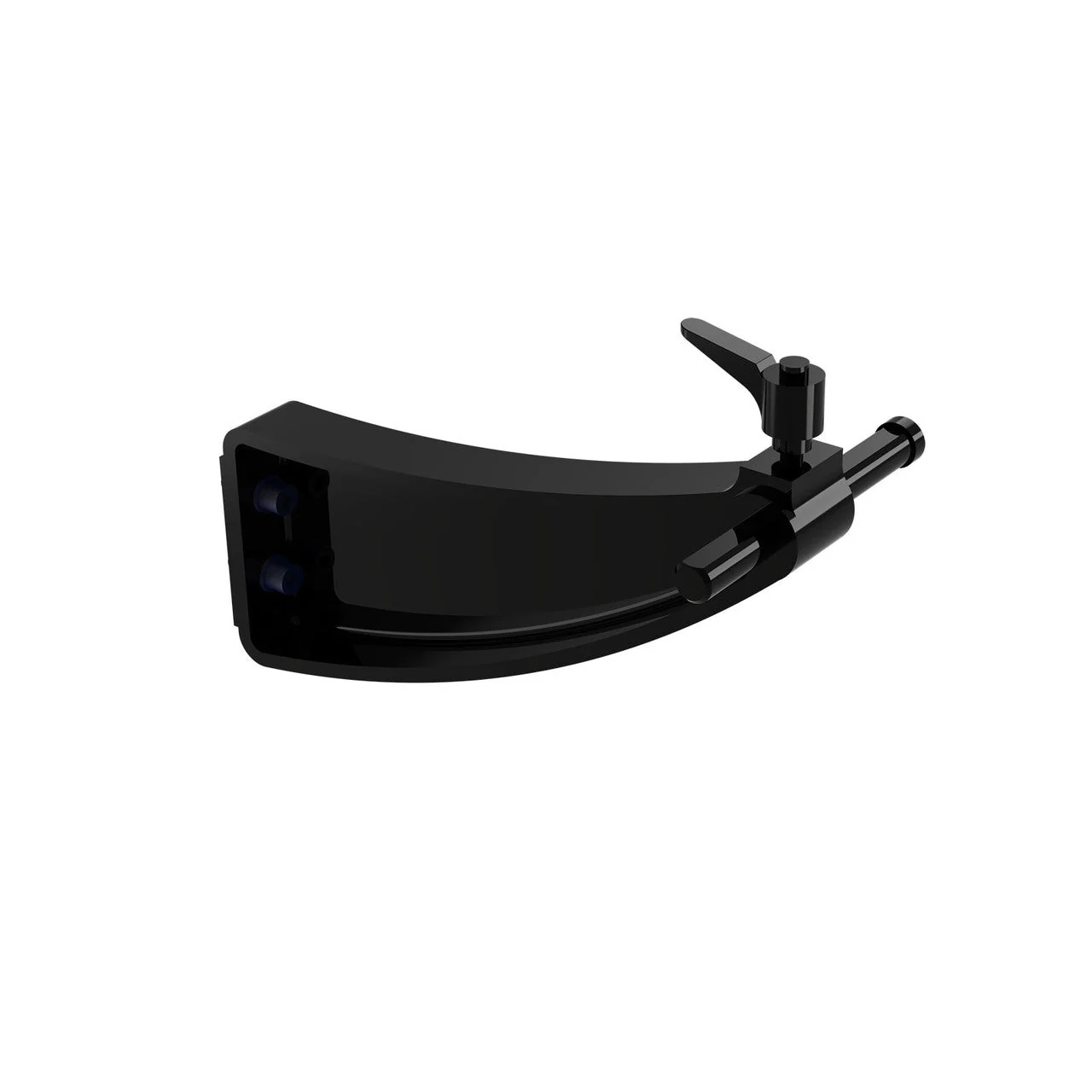

• Cast steel chrome trimmed tool rest with micro height adjustment
• End mounts for extension bed for longer centre distance
• Side mounts of extension bed for back turning
• Lower end mounts of extension bed for outboard turning set up
• Extension bed mounts on both ends of bed

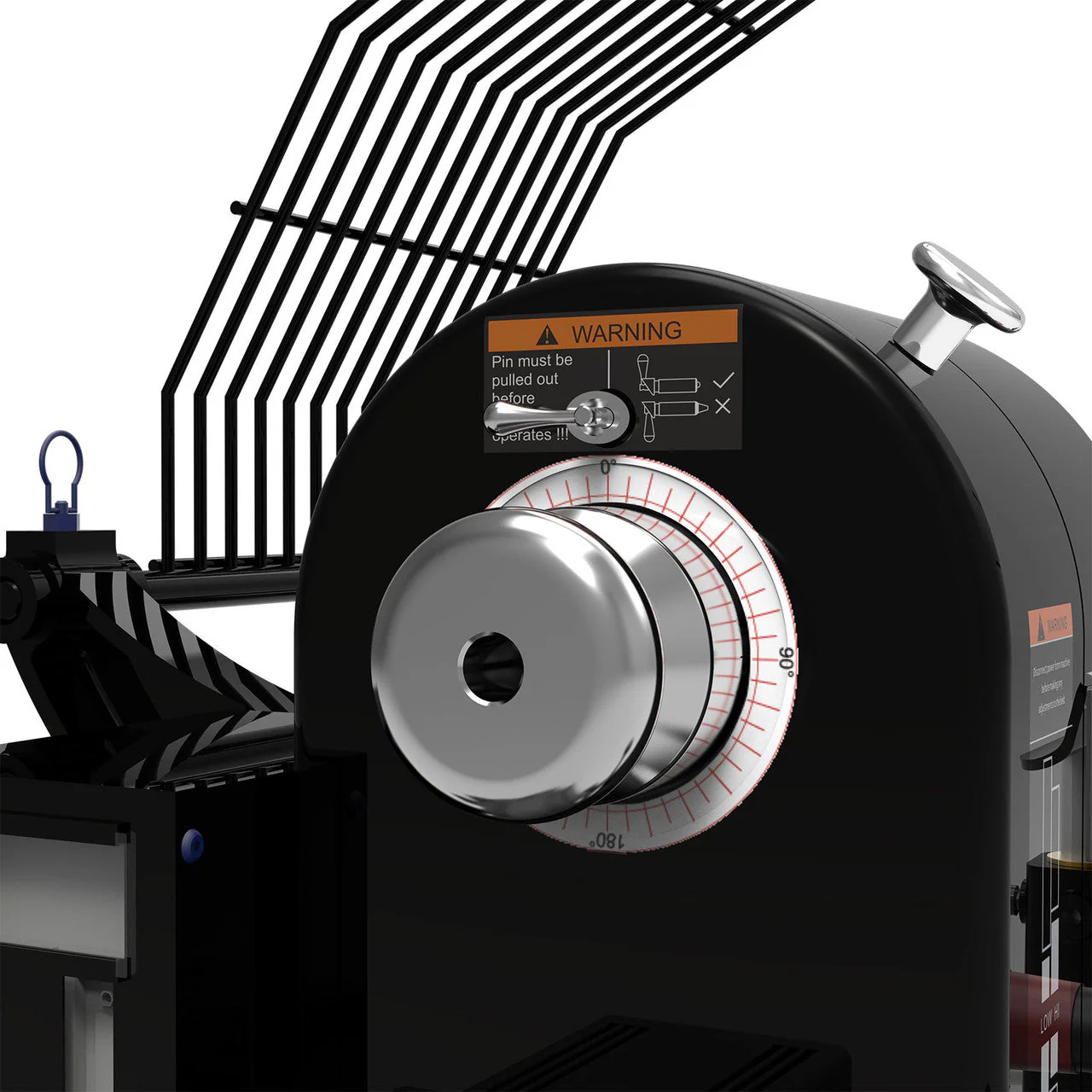

• Built-in spindle lock and index
• 2” riser blocks for working height adjustment
• Optional Spindle guard
• Convenient chisel storage shelf under bed (optional)
• Universal mobility system (optional)
• CE and CSA certified

Standard Equipment:

• Spur centre
• Live centre
• 3" Face plate
• Knock out rod
• Tool kit

Optional Equipment

• 12” Extension bed with swing away system (Standard for T-60)
• 20" Extension bed with Tool rest riser bushing for tool rest
• Rear Comparative brackets
• Spindle guard
• Chisel storage pan
• Mobility system

Model	T-60
Swing Over Bed	510mm (20")
Swing Over Tool Rest Base	200mm (16")
Max. Outboard Turning Swing	810mm (32")
Distance Between Centres	915mm (36")
Spindle Speeds	L: 50-820rpm / H: 200-3500rpm
Spindle Nose	1-1/4" x 8 TPI
Spindle Taper	MT2#
Hole Through Spindle (Diam.)	16mm (5/8")
